CABLES


SPC Power Solutions have now teamed up with a number of industry leading cable manufactures to provide a wide range of high-quality multicore and power covering cables.

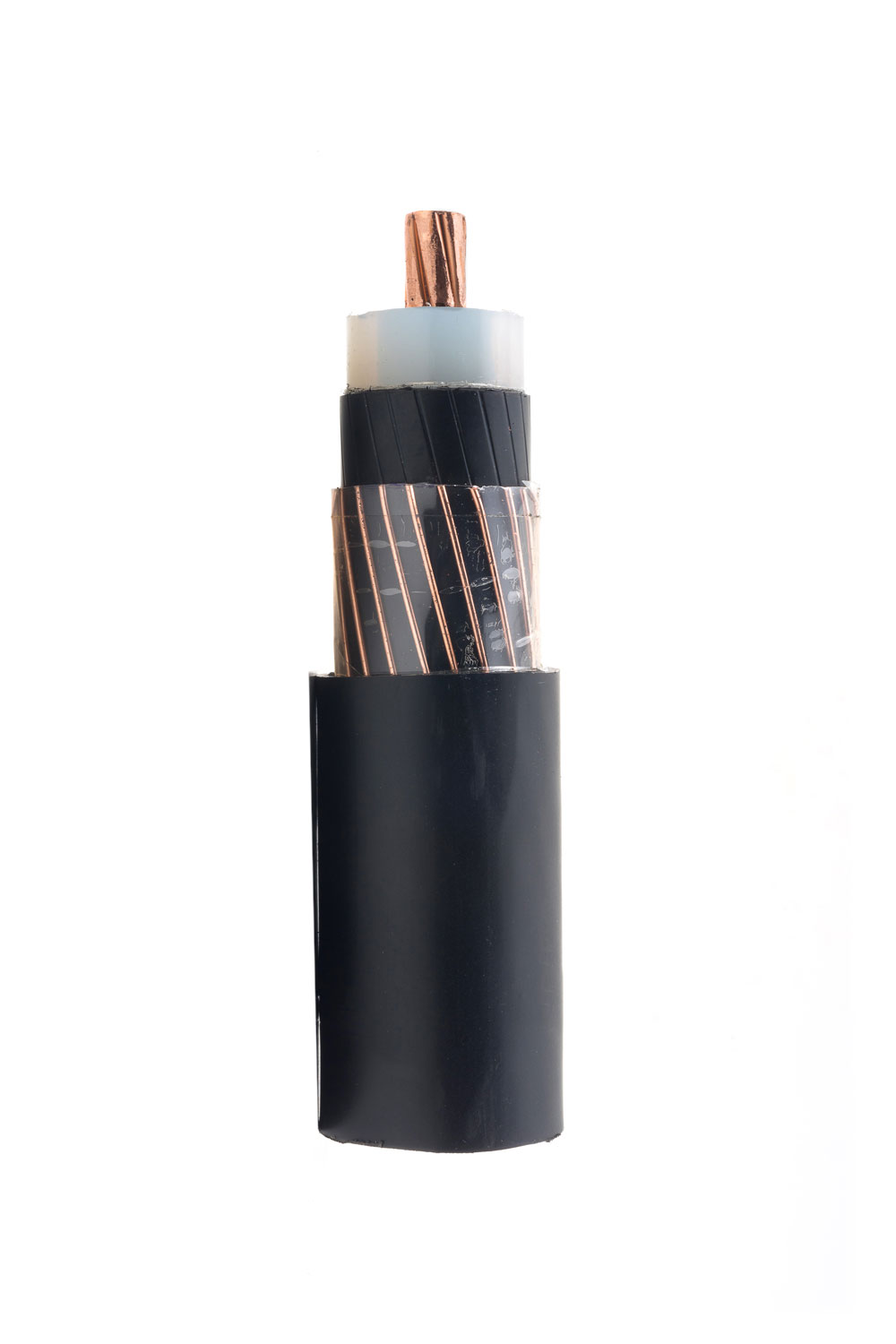

HV Cables



Our HV cables range from 26/45kV to 40/69kV and cover many voltages in-between
  • To IEC and BS standards
  • 50mm2 to 400mm2
  • 16mm2 to 35 mm2 screens
  • Single and three core cable
  • XLPE insulation
  • PVC or PE outer sheath
  • Copper conductor
  • Aluminum or Galvanized round steel wire armored cable
  • Inner and outer semi conductive screens
  • Longitude water blocking available

MV Cables




Our MV cables range from 3.6/6kV to 20.3/35kV and cover many voltages in-between
  • To IEC and BS standards
  • 25mm2 to 630mm2
  • 16mm2 to 35 mm2 screens
  • Single and three core cable
  • XLPE insulation
  • PVC, PE or HFFR outer sheath
  • Copper or aluminum conductor
  • Aluminum or Galvanized round steel wire armored cable
  • Inner and outer semi conductive screens
  • Longitude water blocking available

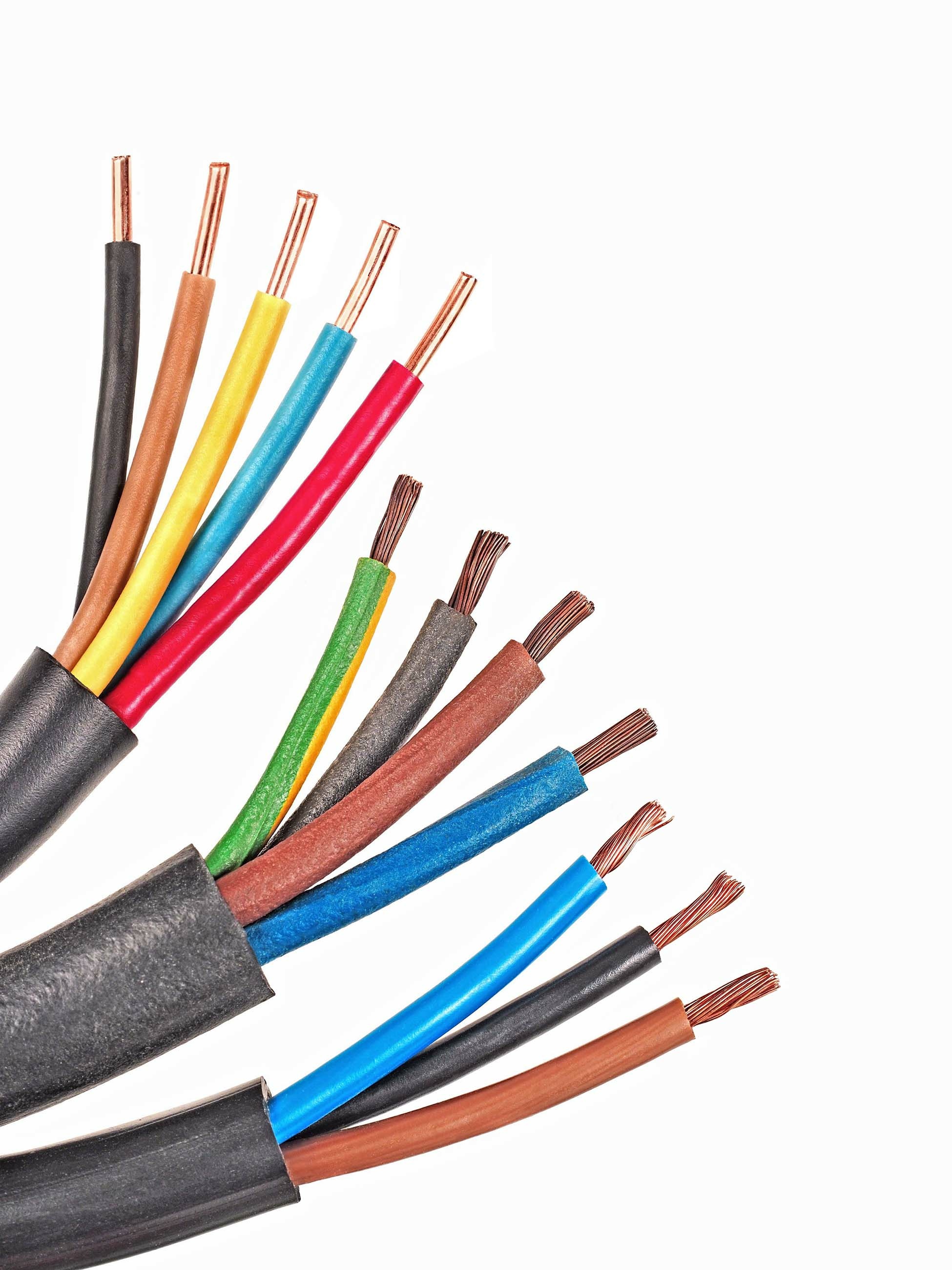

LV Cables




With a wide range of LV cables, we can tailor our solution to suit all your needs;
  • To IEC and BS standards
  • 1.5mm2 to 630mm2
  • Up to 40 multicore
  • PVC or XLPE insulation
  • Copper or aluminum conductor
  • steel wire armored cable (stranded/flat/tape available)
  • Concentric Conductor screen (copper)
  • Halogen free, Flame retardant available
